About the parts of a window

A Visma.net ERP window consists of several basic parts.

The window can include only one part or a combination of parts, depending on the functionality and use of the window.

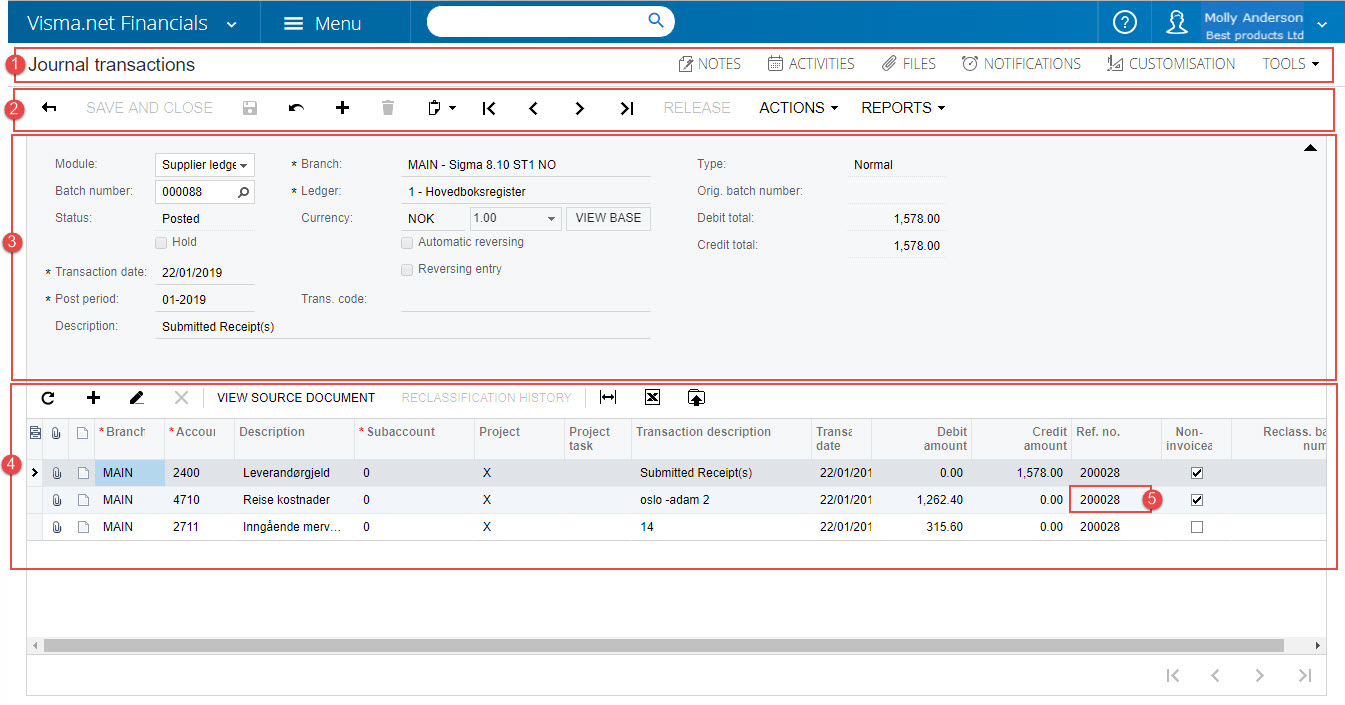

The following screenshot shows a typical Visma.net ERP screen with the parts of a window that appear on it.

  1. The window title bar, which you find on each Visma.net ERP page, includes buttons for managing the window-related information.

    You can use this bar to navigate to a help topic for the window, to view the files attached to window records, and to add the window to favorites, among other capabilities.
    For more information, see: About the window title bar.

  2. The window toolbar provides data navigation and processing buttons that apply to the entire window.

    You can use these buttons to cancel or save changes you have made, insert or delete an object, or navigate through the objects created while you use the window.

    For more information, see: About the window toolbar.

  3. The top part includes a collection of elements of different types, generally arranged in a column or in multiple columns.
    This area may contain a summary of a document if a window contains a document or a variety of selections you can make to determine the information in the details area.

  4. The details area contains the data of the object or entity.

    In some windows, the details area contains a table.
    A table is an arrangement of similar objects or details displayed with the same number of parameters.
    For more information, see: Tables - overview.

  5. Window elements are used to enter information or settings to be stored in the database, specify selection criteria for presenting information in the window, or display relevant information in the window.
    For more information, see: About the window elements.
